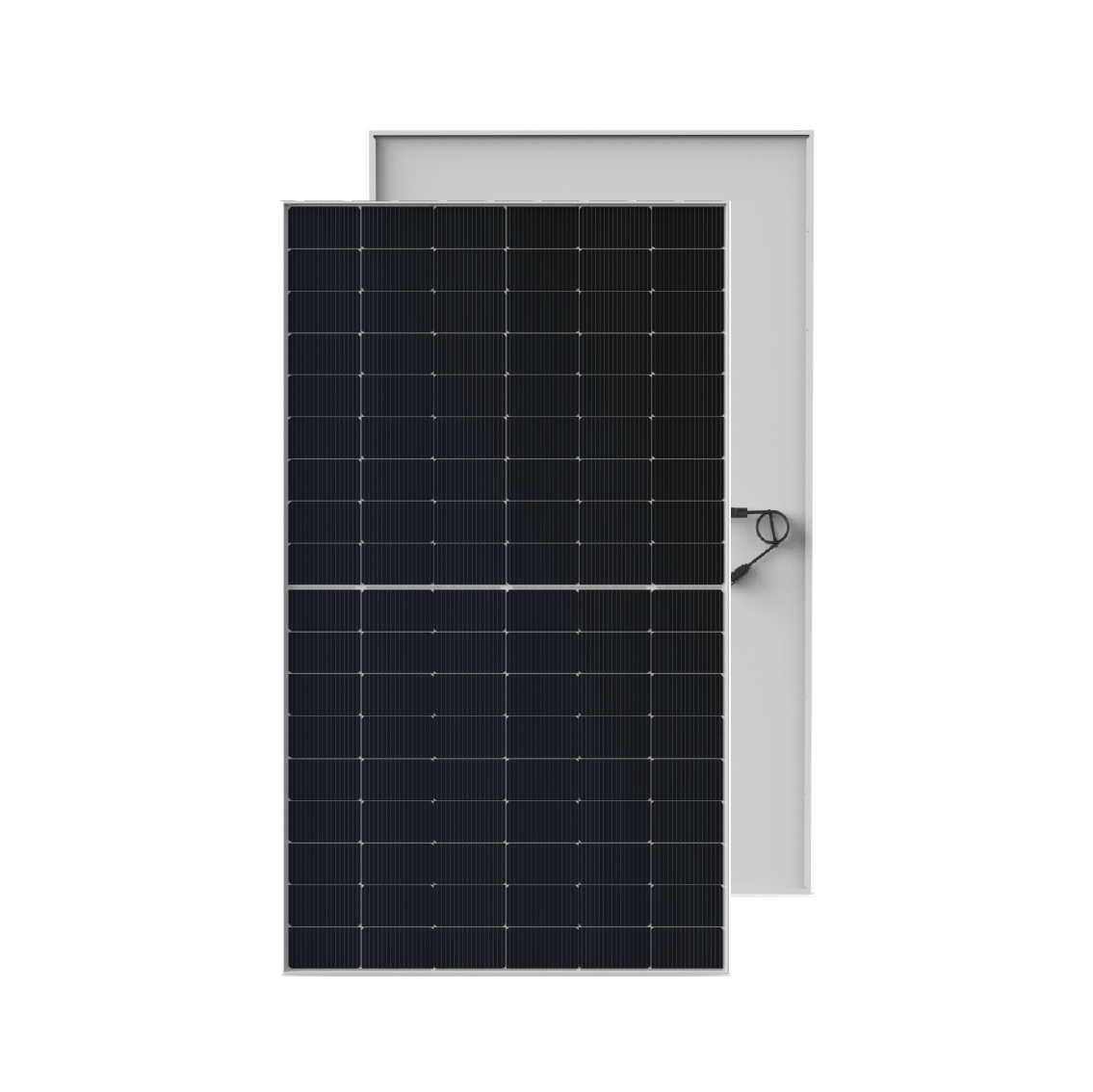

OSDA N PRO is an N-type single-sided TOP
photovoltaic module, produced by Ningbo Ouda Optoelectronics Co., Ltd., with power ranging from 515 W to 535 W and other different specifications.
In terms of electrical performance, its parameters are stable under STC ( irradiance 1000w / m2, battery temperature 25 °C, atmospheric pressure AM1.5 ) conditions. Different power models correspond to their respective specific parameters such as voltage and current, and adapt to the 1500V system. The operating current is 20A and can be operated at an ambient temperature of-40 ~ + 85 °C.
In terms of mechanical properties, the component is based on 182 * 105 N single crystal, with a size of 1962 * 1134 * 30 mm, a weight of 22.90 kg, and a protection level of IP68.It can withstand 5400 Pa snow load and 2400 Pa wind load, and has various installation methods and strong adaptability.
In addition, the product conforms to many international standards such as IEC61215 : 2021, IEC61730 : 2023 and ISO9001 : 2015. It also provides 25 years of product process quality assurance and linear power quality assurance, which provides users with long-term use guarantee while ensuring quality.
