Model No.: ODA-120MHD（210）
ODA-120MHD is a groundbreaking innovation in the photovoltaic industry, designed to maximize energy efficiency and reliability for solar power stations. This advanced module integrates 210 mm large silicon wafer technology and cut-half module technology, significantly enhancing light energy capture while minimizing internal current loss. The result is a higher power output that ensures optimal performance for any solar installation.
Equipped with multi-main-gate (MBB) technology, the ODA-120MHD improves optical utilization and reduces resistance loss, making it an ideal choice for those seeking maximum energy yield. Combined with non-destructive cutting technology, this module minimizes the risk of cracking, ensuring long-term stability and durability even under challenging conditions. The anti-PID (potential-induced degradation) technology, certified by TUV North Germany, guarantees excellent performance in high humidity and high voltage environments, extending the component's lifespan and maintaining its efficiency over time.

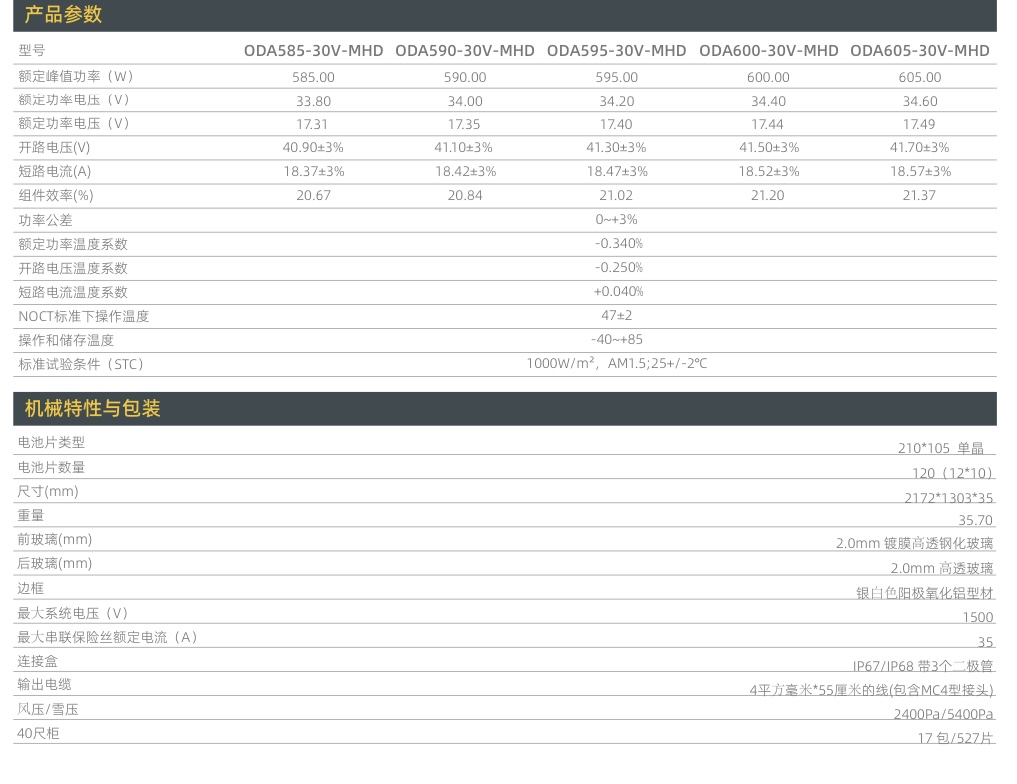

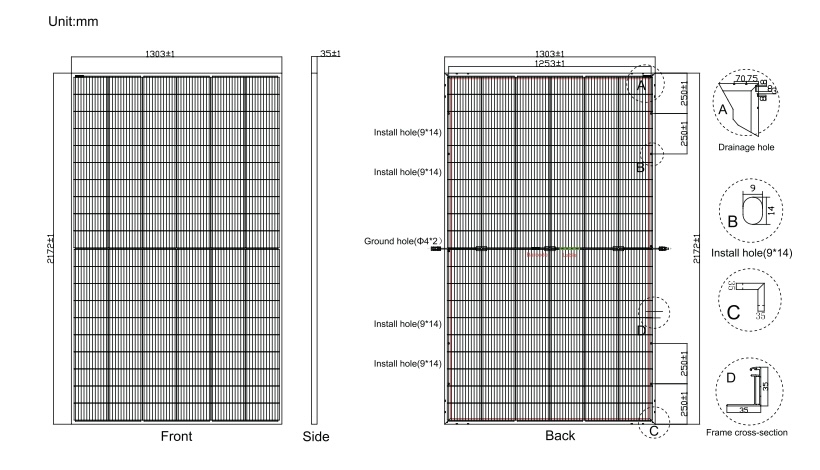

The double glass structure of the ODA-120MHD features 2.0mm high-permeability tempered glass on both sides, offering superior light transmittance and impact resistance. This design outperforms traditional backplane modules in weather resistance, making it suitable for harsh environments such as high humidity and salt fog. Its lightweight construction, measuring 2172 × 1303 × 35mm and weighing only 35.7kg, makes it easy to handle and install. The silver-white anodized aluminum frame provides additional strength, with wind pressure resistance up to 2400Pa and snow pressure resistance up to 5400Pa, ensuring safe operation in extreme weather conditions.
Installation is made simple with standard 4 mm × 55 cm MC4 connector cables and a connection box with IP67/IP68 protection rating. The module supports rapid installation and maintenance, optimizing operational efficiency. Additionally, the ODA-120MHD can be efficiently transported, with 17 packages of 527 pieces fitting into a 40-foot container, reducing logistics costs and improving supply chain efficiency.

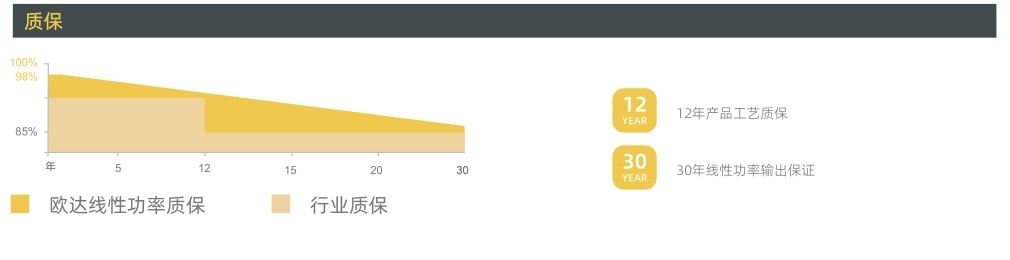

With a 12-year product process quality assurance, the ODA-120MHD guarantees no process defects within this period, providing peace of mind to users. The 30-year linear power output guarantee ensures that the power attenuation in the first year is ≤ 3%, followed by an annual attenuation of ≤ 0.45%. This means the module maintains a rated power of ≥ 82% after 30 years, far exceeding industry standards and securing long-term revenue for solar power stations.
The ODA-120MHD is ideal for a wide range of applications, including residential, commercial, and industrial solar installations. Its robust design and high-performance capabilities make it suitable for locations with extreme weather conditions, such as coastal areas, deserts, and high-altitude regions. Whether installed on rooftops, ground-mounted systems, or in remote off-grid locations, this module delivers consistent and reliable energy generation.
Users have praised the ODA-120MHD for its exceptional efficiency, durability, and ease of installation. Many have noted that the module’s performance remains stable over time, even in challenging environments. The combination of advanced technology, high-quality materials, and rigorous testing has made it a popular choice among solar professionals and end-users alike.
What sets the ODA-120MHD apart from other photovoltaic modules is its innovative use of large silicon wafers, MBB technology, and double glass construction. These features not only enhance performance but also ensure longevity and reliability. The module’s ability to maintain high power output over decades makes it a valuable investment for any solar project.
For those looking to maximize their return on investment in solar energy, the ODA-120MHD offers a compelling solution. With its proven track record of performance, industry-leading warranties, and suitability for diverse environments, it stands as a top choice for modern solar power systems. Whether you are installing a new solar array or upgrading an existing one, the ODA-120MHD is a reliable and efficient option that meets the highest standards of the photovoltaic industry.
As the demand for clean and sustainable energy continues to grow, the ODA-120MHD represents a forward-thinking approach to solar technology. Its integration of cutting-edge innovations ensures that it remains at the forefront of the market, delivering superior performance and value to users around the world.
