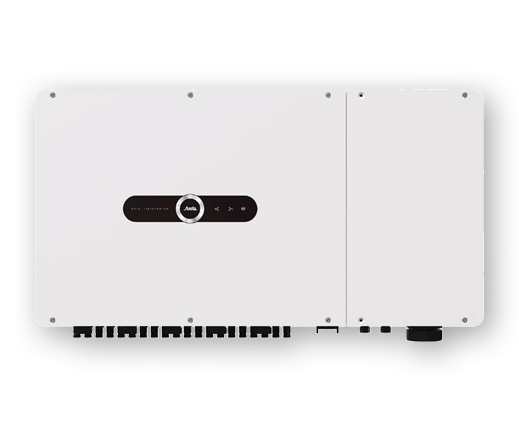

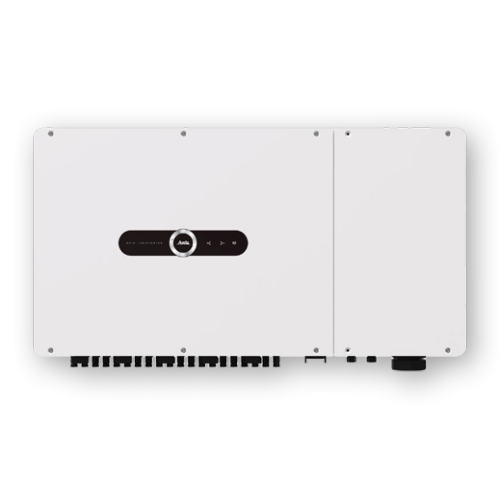

Model No.: AU100 / 125 / 136K3P-HV Three-phase Grid-connected inverter
The AU100 / 125 / 136K3P-HV is a high-power three-phase
Grid-connected Inverter designed for large-scale energy scenarios. The rated output power covers 100-136KW. With ultra-high conversion efficiency, flexible adaptation of multiple MPPTs and strong environmental tolerance as the core advantages, it is suitable for large-scale industrial and commercial plants, centralized photovoltaic power stations and other high-power power generation scenarios. It can efficiently realize the stable transmission of large-scale solar power generation to the grid, help optimize the energy structure and maximize the generation revenue.
The highest efficiency of the whole machine is 98.9 %, and the European efficiency is 98.3 % -98.4 %. The energy loss is at the leading level in the industry, which significantly improves the power generation income. It supports 110 % output overload, can cope with short-term power fluctuations, and the upper limit of photovoltaic configuration is 150 %, which can fully exploit the power generation capacity of photovoltaic modules. It is equipped with 10 MPPT trackers, MPPT voltage range 200-1000 V, single MPPT supports up to 2 sets of strings, compatible with different specifications of photovoltaic strings, suitable for complex power station design schemes, and stronger power generation stability.
The protection level reaches IP66 ( waterproof and dustproof ) + C5 anti-corrosion level, which can cope with harsh environments such as high humidity, dusty and high salt fog, and is suitable for complex areas such as coastal and industrial areas. The working temperature covers − 25 °C - + 60 °C, the relative humidity is 0-100 % ( no condensation ), the maximum working altitude is 4000 m, and it can still operate stably in the scene of large temperature difference and high altitude. The intelligent forced air cooling design has high heat dissipation efficiency, and the self-consumption at night is less than 1W, and the low energy consumption characteristics are significant, which further reduces the operating cost.

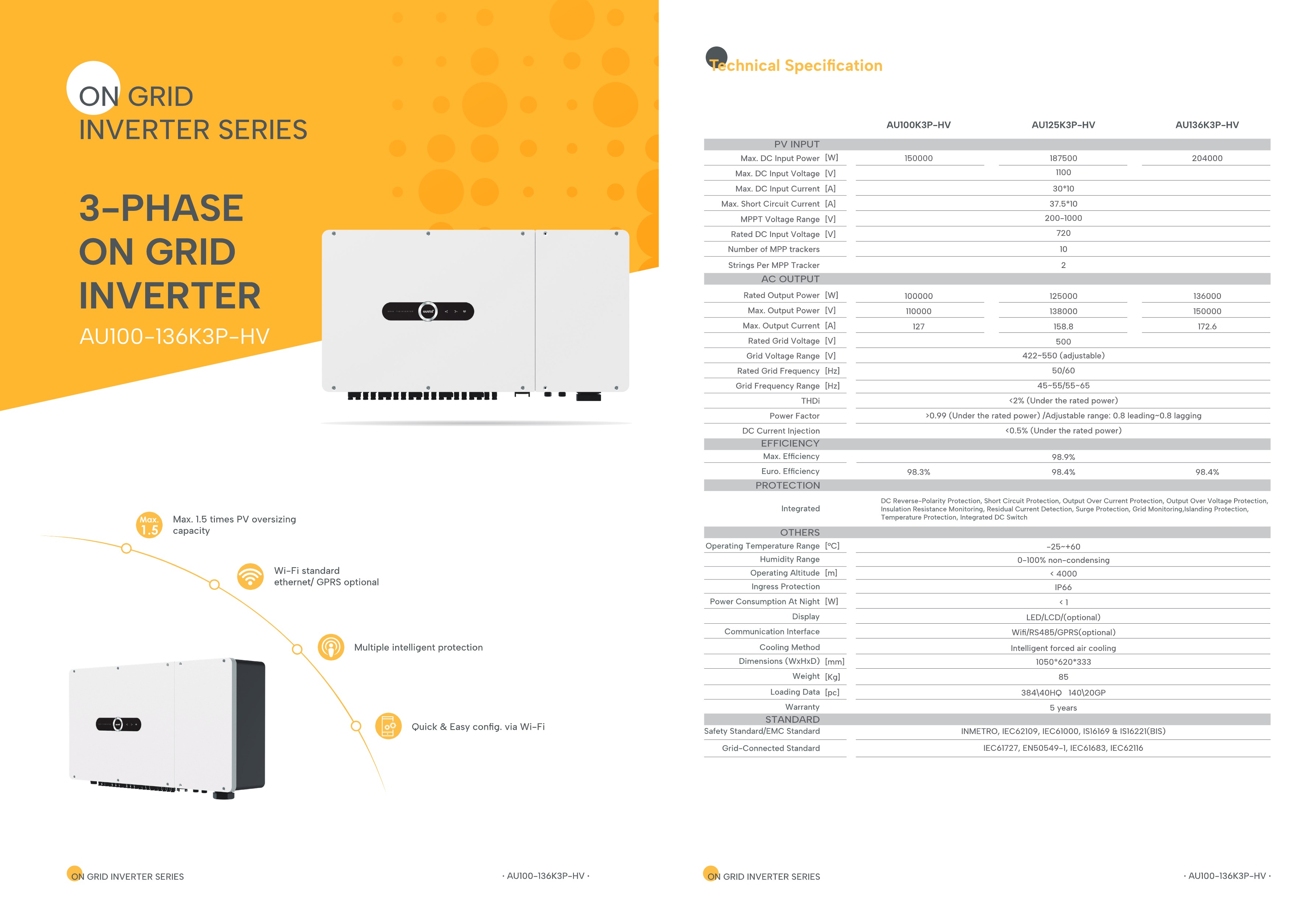

Here are the detailed parameters of the product
