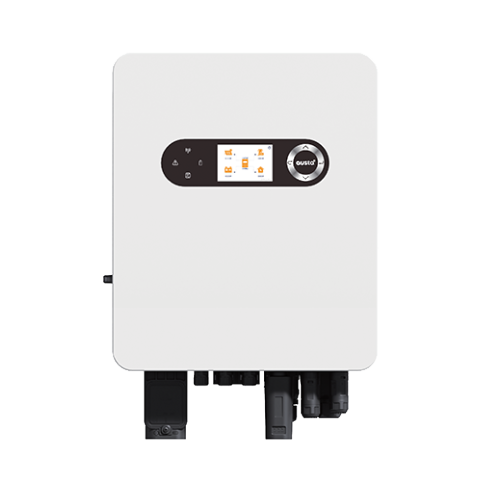

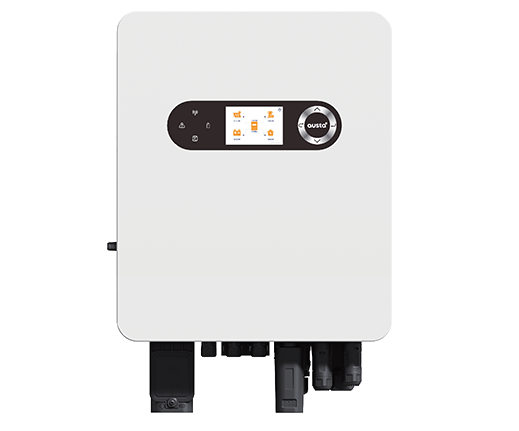

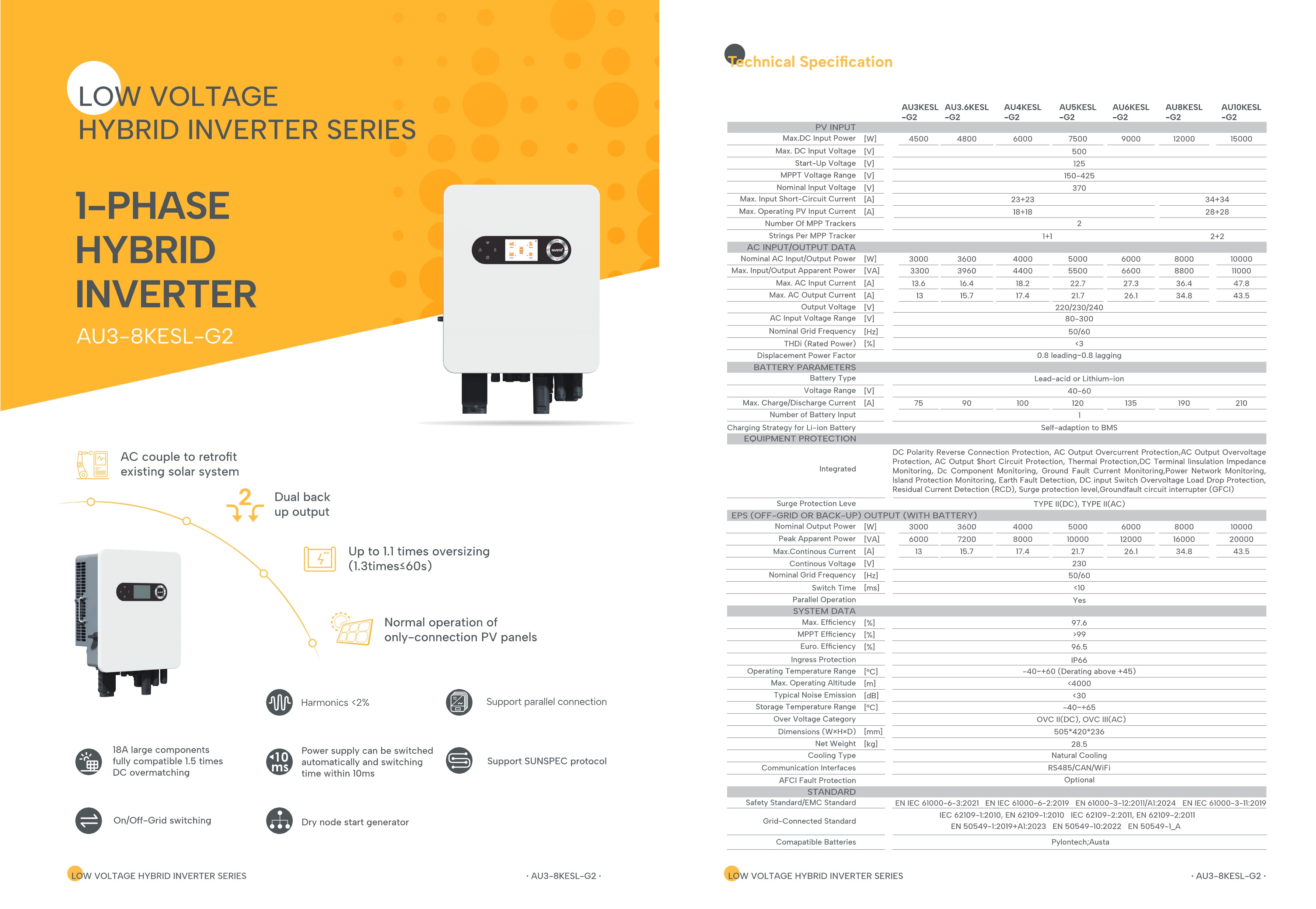

AU3 / 3.6 / 4 / 4.6 / 5 / 6 / 8KESL-G2 is an energy storage inverter designed for low-voltage single-phase scenarios. It covers 3-8KW rated output power and is compatible with lithium batteries and lead-acid batteries. It has high reliability, strong adaptability and flexible scalability, and can meet the diverse energy storage and power supply needs of households and small commercial places.
1.Core product characteristics
High power and strong overload capacity : the rated output power is 3000-8000 W, supporting 110 % overload output ( 1.3 times the power lasts ≤ 60 s ), and the maximum output power in a short time can reach 16000 W ( lasting 15 seconds ), which can meet the demand of instantaneous high power electrical equipment.
Fast response and double backup guarantee : UPS switching time < 10ms, when the power grid interruption can quickly switch to backup power supply ; it is equipped with two independent standby outputs. The maximum output power of each channel is consistent with the rated power, and the power supply of key equipment is more stable.
Flexible expansion and adaptability : support up to 16 single-phase devices in parallel, and can be flexibly expanded according to the scale of electricity consumption ; it supports dry contact to start the generator, and the photovoltaic input supports 300 meters long distance wiring, and the installation scene is less limited.
High safety and low loss :It has the function of AI early arc detection, which can realize Arc without false alarm, and also includes multiple safety designs such as photovoltaic reverse polarity protection, insulation resistance detection, overcurrent / short circuit / overvoltage protection. The maximum photovoltaic efficiency is 98 %, the highest efficiency in Europe is 97.5 %, and the energy consumption is lower.
